This page contains present day photos (Year 2000 to date) of Ontario's King's Highway 401, arranged by location from London easterly to Ingersoll. All photographs displayed on this page were taken by the Webmaster (Cameron Bevers), unless specifically noted otherwise. Click on any thumbnail to see a larger image!

Please note that all photographs displayed on this website are protected by copyright. These photographs must not be reproduced, published, electronically stored or copied, distributed, or posted onto other websites without my written permission. If you want to use photos from this website, please email me first for permission. Thank-you!

Page 14: Present Day King's Highway 401 Photographs (London to Ingersoll)


HWY 401 #190 - © Cameron Bevers             HWY 401 #195 - © Cameron Bevers

Left - Aerial view of the old Wellington Road Interchange on Hwy 401 in London, facing southwest towards Hwy 402. See an Enlarged Photo here.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)

Right - Aerial view of the old Wellington Road Interchange on Hwy 401 in London, facing east towards Ingersoll. See an Enlarged Photo here.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)





HWY 401 #440 - © Cameron Bevers             HWY 401 #429 - © Cameron Bevers

Left - Aerial view of the old Wellington Road Interchange on Hwy 401 in London, facing south towards St. Thomas. See an Enlarged Photo here.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)

Right - Original Wellington Road Overpass on Hwy 401 in London. This structure was completed in 1956 and was demolished during a highway widening project in 2008. The bridge had to be removed because there was insufficient space to provide additional full-width through lanes on Hwy 401 below the existing bridge. In addition, the existing lane configuration across the old overpass did not allow badly-needed capacity improvements to take place on Wellington Road. See an Enlarged Photo here.
(Photograph taken on April 8, 2006  -  © Cameron Bevers)





HWY 401 #430 - © Cameron Bevers             HWY 401 #431 - © Cameron Bevers

Left - Facing east along Hwy 401 from the Wellington Road Overpass in London. Between 2006 and 2008, an extensive reconstruction project was carried out along Hwy 401 through London, which saw the highway widened to six continuous through lanes through the Wellington Road Interchange. In addition, a new widened structure was built for Wellington Road and the interchange ramps were reconfigured. See an Enlarged Photo here.
(Photograph taken on April 8, 2006  -  © Cameron Bevers)

Right - Wellington Road Overpass on Hwy 401 in London, shown shortly before the bridge demolition on May 3, 2008. See an Enlarged Photo here.
(Photograph taken on May 3, 2008  -  © Cameron Bevers)





HWY 401 #432 - © Cameron Bevers             HWY 401 #433 - © Cameron Bevers

Left - The earth fill approaches were cut away from the structure's abutments and a bypass lane was built around the north side of the old bridge. This bypass lane was built to allow westbound Hwy 401 traffic to proceed through the interchange during the bridge demolition. Protective fencing was set up to ensure that no debris fell onto the bypass lane during the bridge removal operations. See an Enlarged Photo here.
(Photograph taken on May 3, 2008  -  © Cameron Bevers)

Right - The removal of the approach fill exposed the complex rigid frame girder configuration behind the abutment wall. It is quite amazing to see just how compact these rigid frame girder structures really are. It has been over 50 years since this area of the bridge was visible. See an Enlarged Photo here.
(Photograph taken on May 3, 2008  -  © Cameron Bevers)





HWY 401 #434 - © Cameron Bevers             HWY 401 #435 - © Cameron Bevers

Left - This bypass lane eliminates the need for a lengthy detour for westbound Hwy 401 traffic during the bridge removal. Eastbound Hwy 401 traffic made use of the exterior partial-cloverleaf interchange ramps, which allowed traffic to bypass the construction site altogether. Although the new overpass structure was already in service, Wellington Road was closed entirely to traffic during the overnight bridge removal. See an Enlarged Photo here.
(Photograph taken on May 3, 2008  -  © Cameron Bevers)

Right - The old Wellington Road Overpass sits immediately beside the new structure. As a result, it was not possible to remove the old bridge using explosives. See an Enlarged Photo here.
(Photograph taken on May 3, 2008  -  © Cameron Bevers)





HWY 401 #436 - © Cameron Bevers             HWY 401 #437 - © Cameron Bevers

Left - Facing north towards the old and new Wellington Road Overpasses. The new structure is much longer than its predecessor. The new bridge allows for an immediate expansion of Hwy 401 to six lanes, but it will also be able to accommodate future highway expansion. The bridge also provides room for a "sub-collector" lane configuration, which will provide a simpler, single merge point for traffic entering the highway. See an Enlarged Photo here.
(Photograph taken on May 3, 2008  -  © Cameron Bevers)

Right - As dusk falls, heavy demolition equipment gathers beside the Wellington Road Overpass on Hwy 401. The bridge will be drilled and cut into small pieces, so that it can be hauled away from the site in dump trucks. See an Enlarged Photo here.
(Photograph taken on May 3, 2008  -  © Cameron Bevers)





HWY 401 #438 - © Cameron Bevers             HWY 401 #439 - © Cameron Bevers

Left - The bridge demolition was underway by 10:00 p.m. Within hours, the old Wellington Road Overpass was removed in its entirety. See an Enlarged Photo here.
(Photograph taken on May 3, 2008  -  © Cameron Bevers)

Right - Crews remove the western side of the bridge first, and proceed by slowly cutting through the structure towards the eastern side. The Wellington Road structure didn't go down without a fight. Apparently, it was a very difficult bridge removal. See an Enlarged Photo here.
(Photograph taken on May 3, 2008  -  © Cameron Bevers)





HWY 401 #411 - © Cameron Bevers             HWY 401 #412 - © Cameron Bevers

Left - Hwy 74 Overpass across Hwy 401 east of London. This single-span concrete rigid frame bridge was completed in 1956. This bridge represents the typical design used for most of the vintage overpasses along Hwy 401 between London and Woodstock. See an Enlarged Photo here.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)

Right - Facing west along Hwy 401 from the Hwy 74 Overpass. This section of Hwy 401 was widened from four to six lanes in the early 1990s. Several old eight-ramp cloverleaf interchanges along the highway were converted to simple four-ramp diamond interchanges in order to provide sufficient width below the structure for a six-lane highway. The extra freeway lane was built in the space that was previously used for the cloverleaf weaving lane between the loop ramps. This simple design concession spared most of the major overpasses along Hwy 401 between London and Woodstock from premature demolition, in addition to rectifying the traffic weaving problem on the freeway that was caused by the old cloverleaf interchange design.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)





HWY 401 #413 - © Cameron Bevers             HWY 401 #414 - © Cameron Bevers

Left - Facing east along Hwy 401 towards Ingersoll from the Hwy 74 Overpass near London.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)

Right - Facing south across the Hwy 74 Overpass at Hwy 401.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)





HWY 401 #415 - © Cameron Bevers             HWY 401 #416 - © Cameron Bevers

Left - Close-up of the curved concrete parapet design of the Hwy 74 Overpass on Hwy 401.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)

Right - Facing north across the Hwy 74 Overpass at Hwy 401 near London.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)





HWY 401 #198 - © Cameron Bevers             HWY 401 #199 - © Cameron Bevers

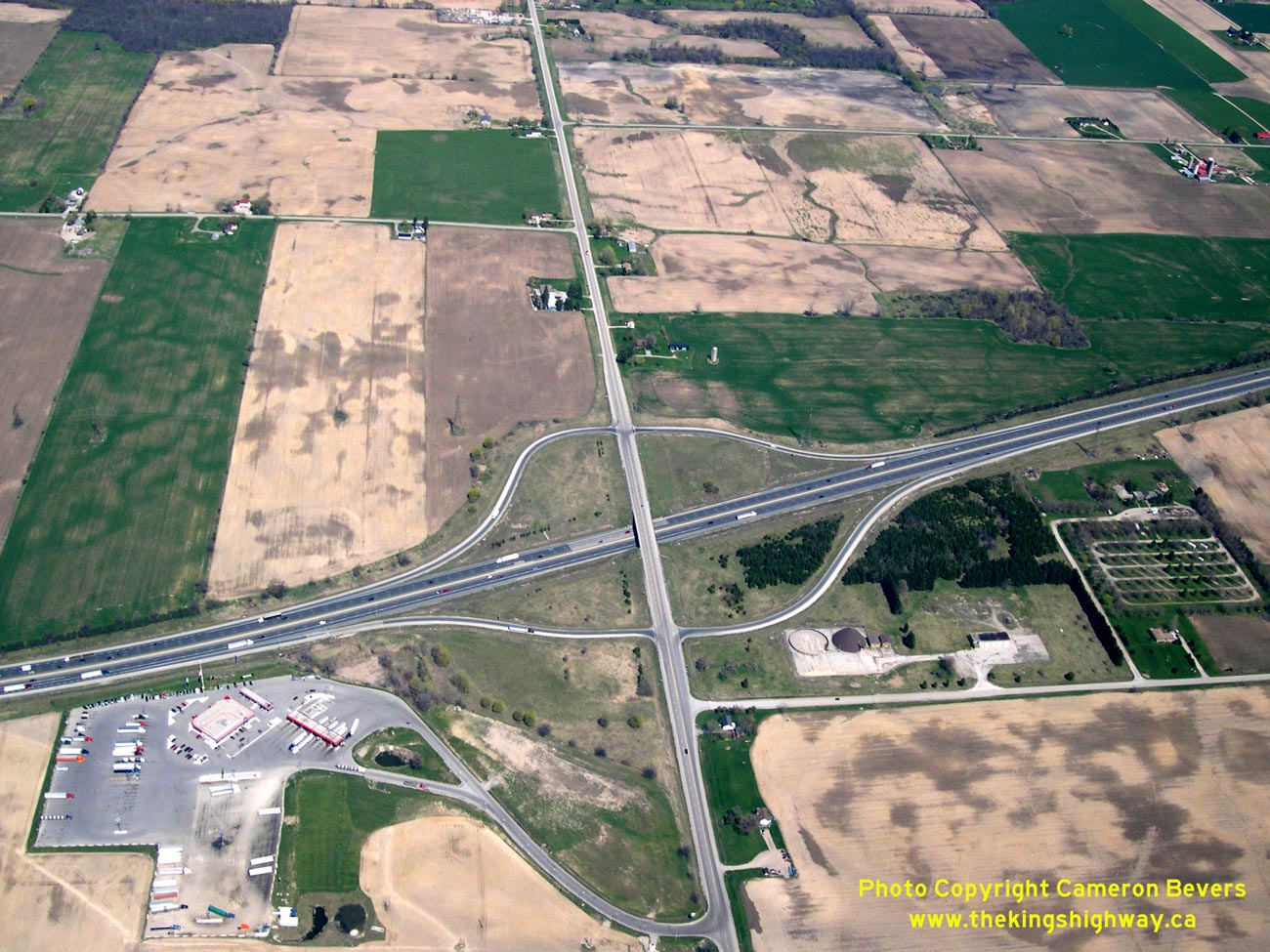

Left - Aerial view of the Hwy 74 Interchange at Hwy 401 facing north. See an Enlarged Photo here.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)

Right - Aerial view of the Hwy 74 and Hwy 401 Interchange, facing northeast.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)





HWY 401 #22 - © Chris Beach

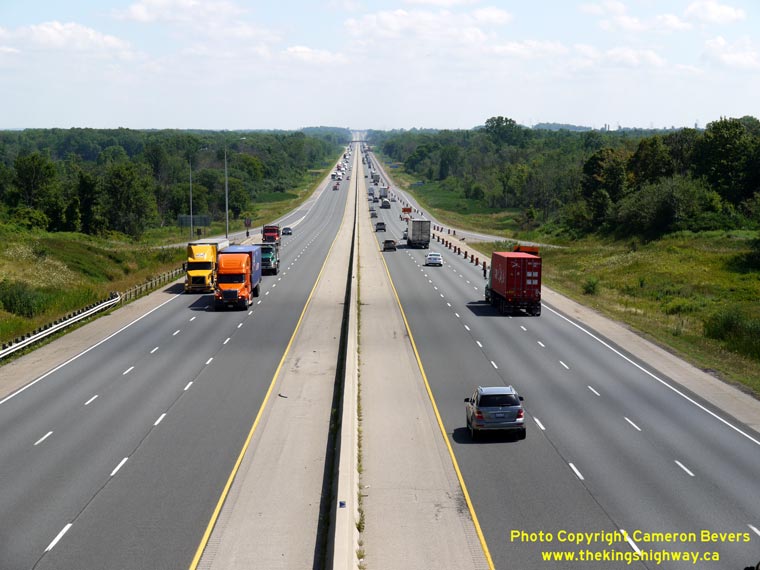

Above - Facing east along Hwy 401 towards Ingersoll from the Dorchester Road Overpass. See an Enlarged Photo here.
(Photograph taken on August 4, 2011  -  © Cameron Bevers)





HWY 401 #196 - © Cameron Bevers             HWY 401 #197 - © Cameron Bevers

Left - Aerial view of the Hwy 73 interchange at Hwy 401 facing north. This former cloverleaf interchange was converted to a diamond interchange during a Hwy 401 widening project in the early 1990s. Traces of the old cloverleaf loop ramps are still evident when the interchange is viewed from the air.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)

Right - Aerial view of the Hwy 73 and Hwy 401 Interchange, facing northeast.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)





HWY 401 #350 - © Cameron Bevers             HWY 401 #345 - © Cameron Bevers

Left - Aerial view of the Truck Inspection Station on Hwy 401 west of the Putnam Road Interchange.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)

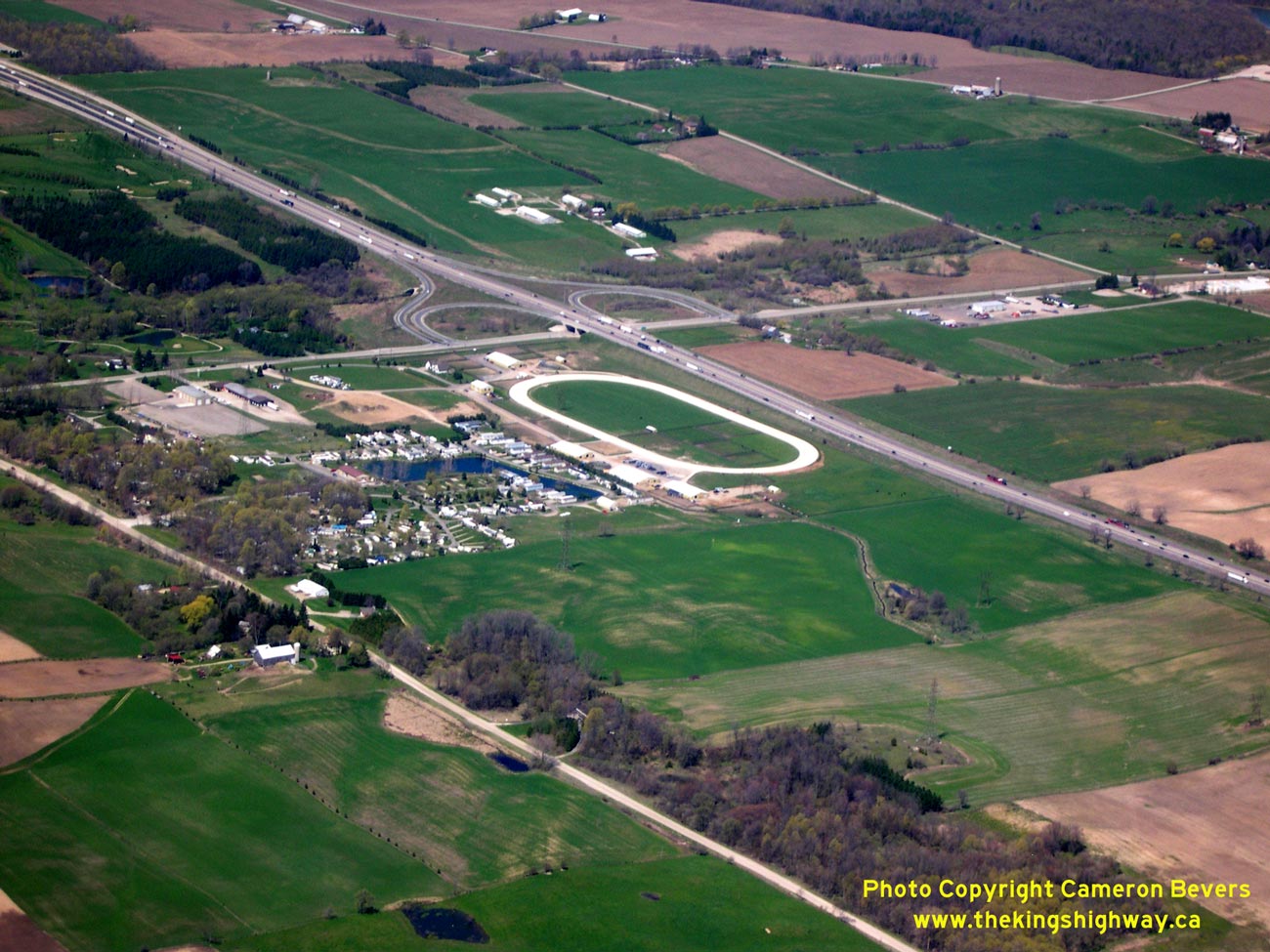

Right - Facing northwest towards the Putnam Road Interchange on Hwy 401. See an Enlarged Photo here.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)





HWY 401 #346 - © Cameron Bevers             HWY 401 #347 - © Cameron Bevers

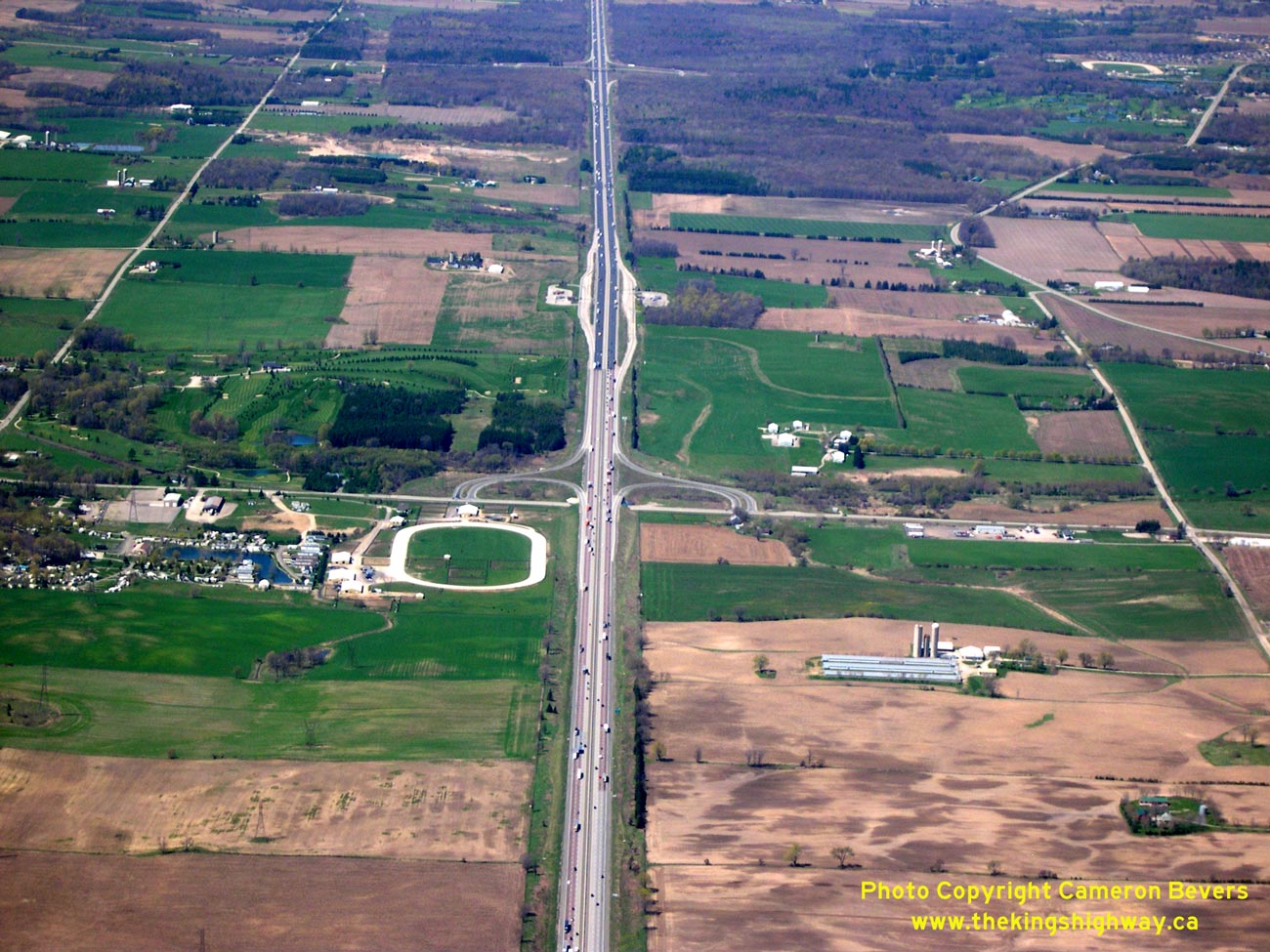

Left - Aerial view of Hwy 401 facing west towards the Putnam Road Interchange. See an Enlarged Photo here.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)

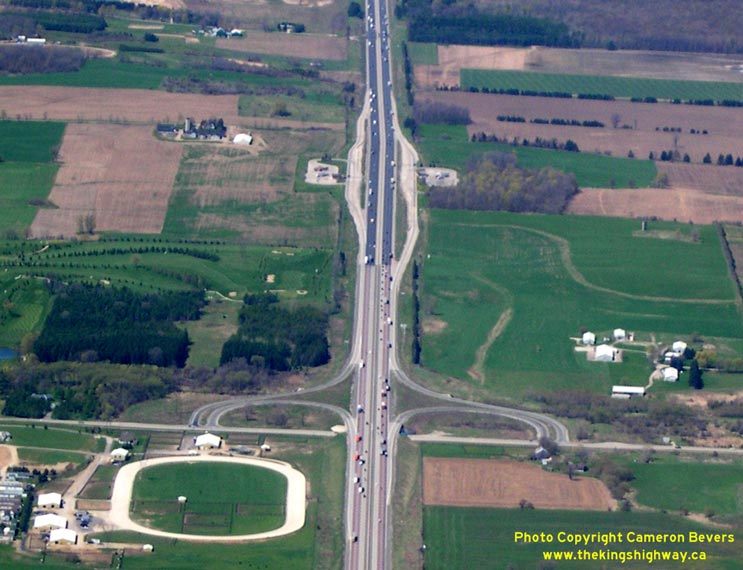

Right - Close-up of the Putnam Road Interchange on Hwy 401, facing west.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)





HWY 401 #348 - © Cameron Bevers             HWY 401 #344 - © Cameron Bevers

Left - Aerial view of the Putnam Road Interchange, facing north. Note the railway just to the right of Putnam Road which also passes beneath Hwy 401.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)

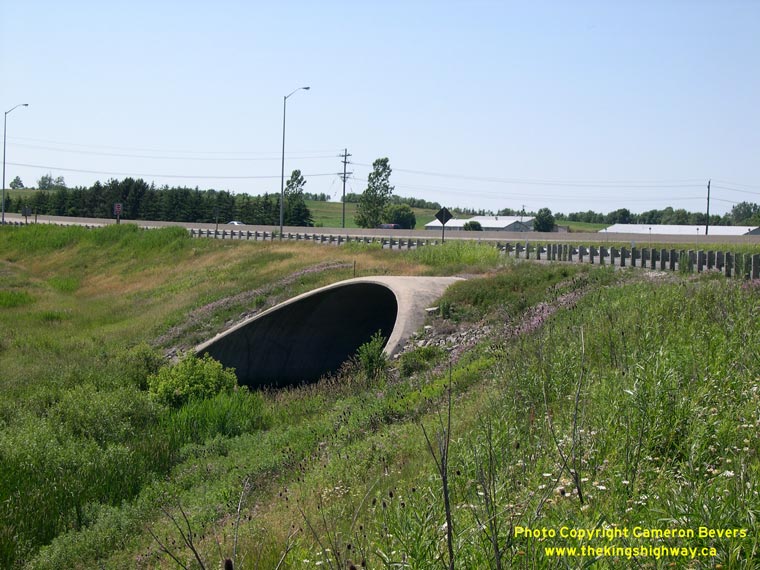

Right - Reynolds Creek Culvert on Hwy 401 just west of Putnam Road. This interesting concrete arch structure was completed in 1956.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)





HWY 401 #339 - © Cameron Bevers             HWY 401 #340 - © Cameron Bevers

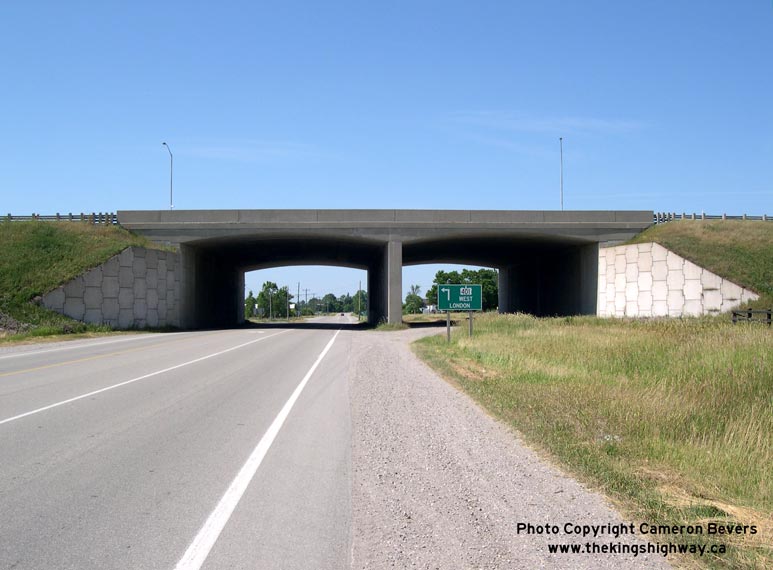

Left - Southern side of the Putnam Road Underpass at Hwy 401 near Ingersoll.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)

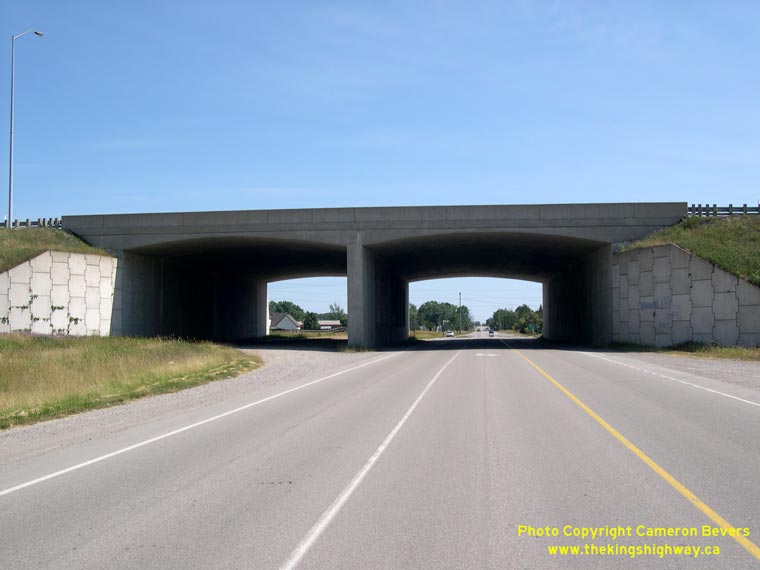

Right - Northern side of the Putnam Road Underpass. This structure is particularly interesting because it is both and road and railway grade separation. The railway passes below Hwy 401 directly beside Putnam Road.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)





HWY 401 #341 - © Cameron Bevers             HWY 401 #342 - © Cameron Bevers

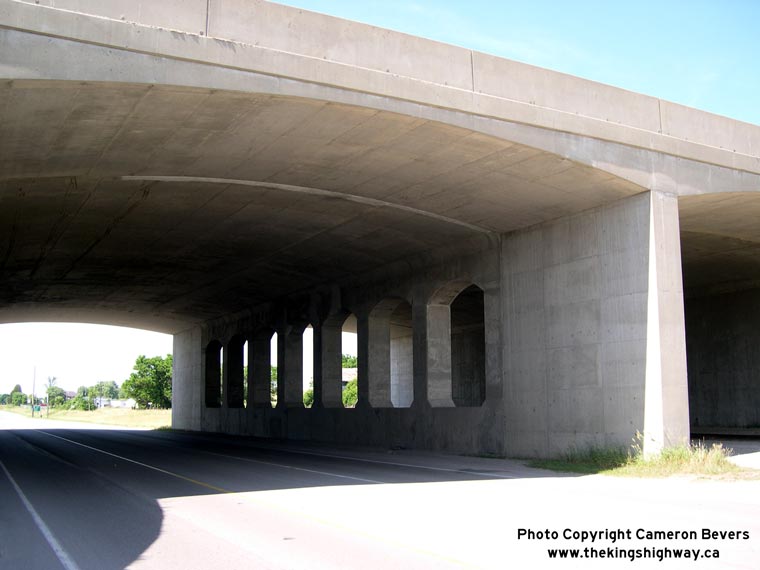

Left - The Putnam Road structure was completed in 1955, but it was widened in 1992 to accommodate an extra lane on Hwy 401 in each direction. The original 1955 pier is flanked on both sides by the more recent pier extensions. Fortunately, the aesthetically-pleasing rigid frame design of the 1955 structure was replicated when the bridge was widened.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)

Right - Close-up of the original 1955 pier, showing the arched design.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)





HWY 401 #343 - © Cameron Bevers             HWY 401 #349 - © Cameron Bevers

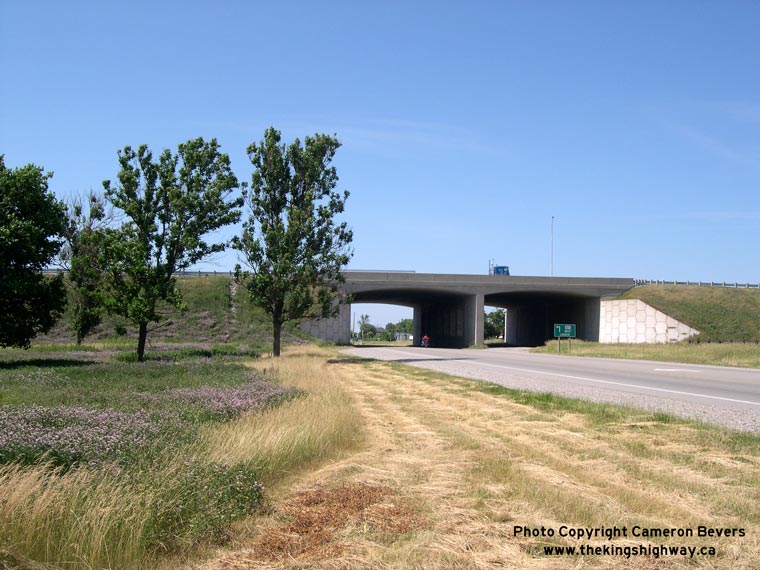

Left - The visual appeal of a freeway can be greatly enhanced by planting trees within the highway right-of-way. The trees in the loop ramp at Putnam Road greatly improve an otherwise mundane freeway interchange. As this photo demonstrates, the trees do not restrict visibility for drivers approaching Putnam Road on the exit ramp from Hwy 401, nor do they pose any significant collision risk. In my opinion, more emphasis needs to be placed on landscaping Ontario freeways. Careful landscape planning and increased tree planting would go a long way to improve the visual appearance of Ontario's roads.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)

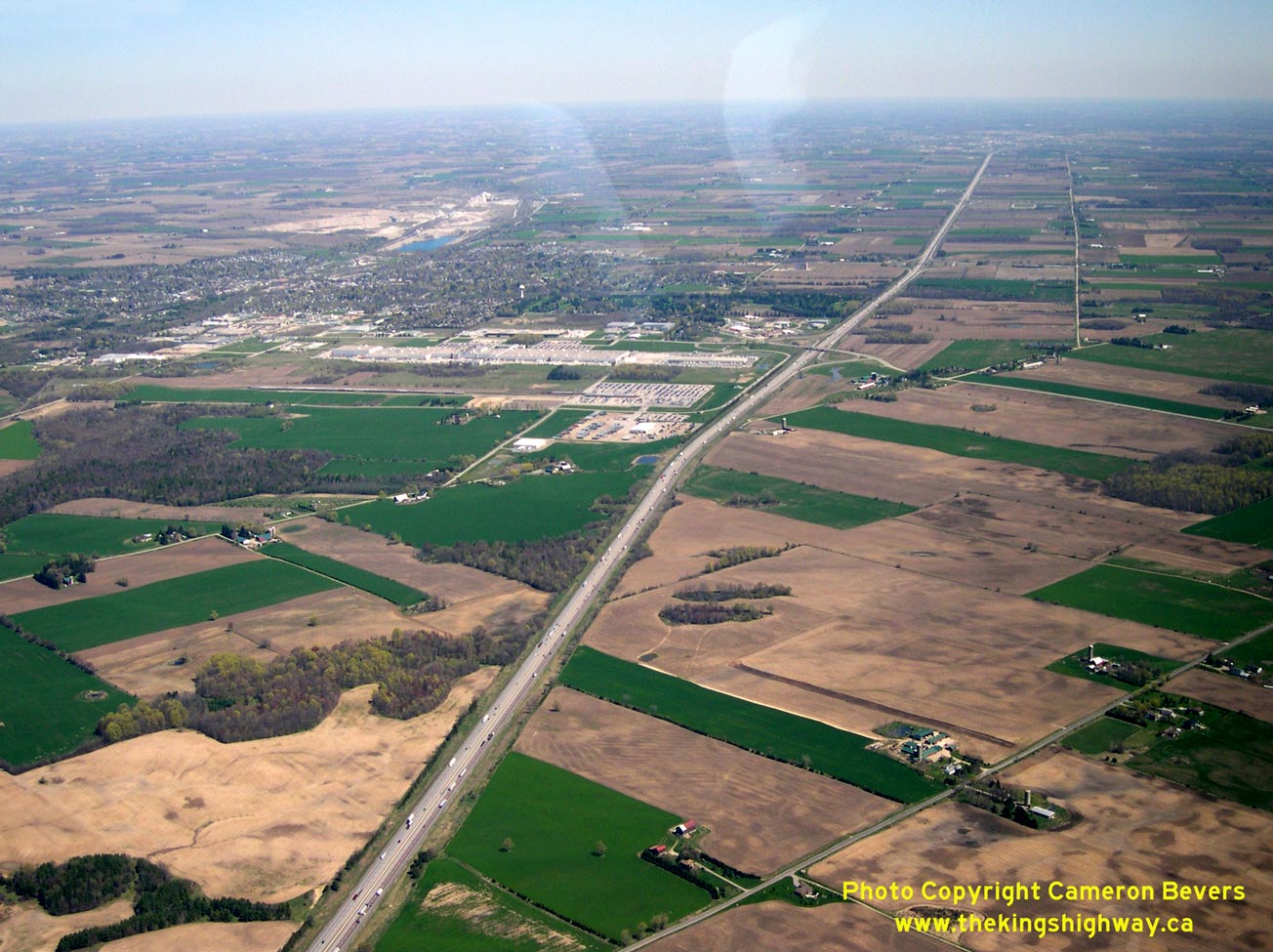

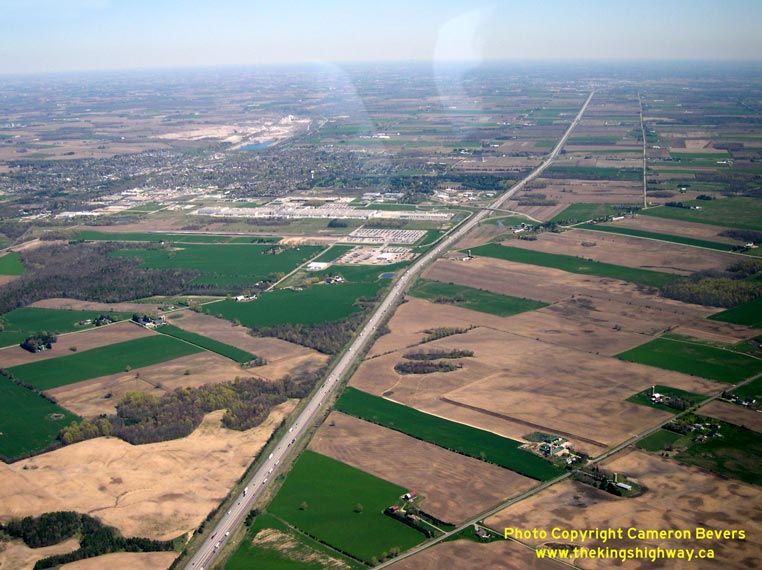

Right - Aerial view of Hwy 401 facing east towards Culloden Road in Ingersoll. See an Enlarged Photo here.
(Photograph taken on April 28, 2006  -  © Cameron Bevers)





HWY 401 #944 - © Cameron Bevers             HWY 401 #945 - © Cameron Bevers

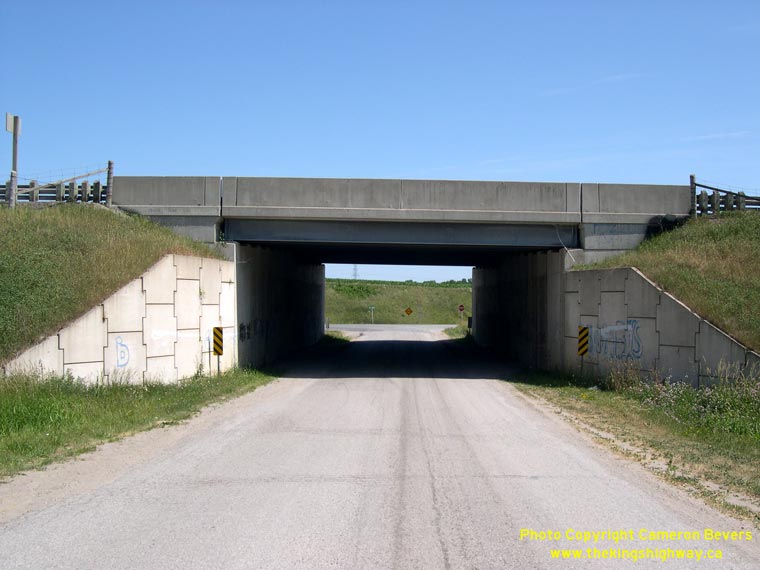

Left - Pigram Road Underpass on Hwy 401 between London and Ingersoll. Structure completed in 1955.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)

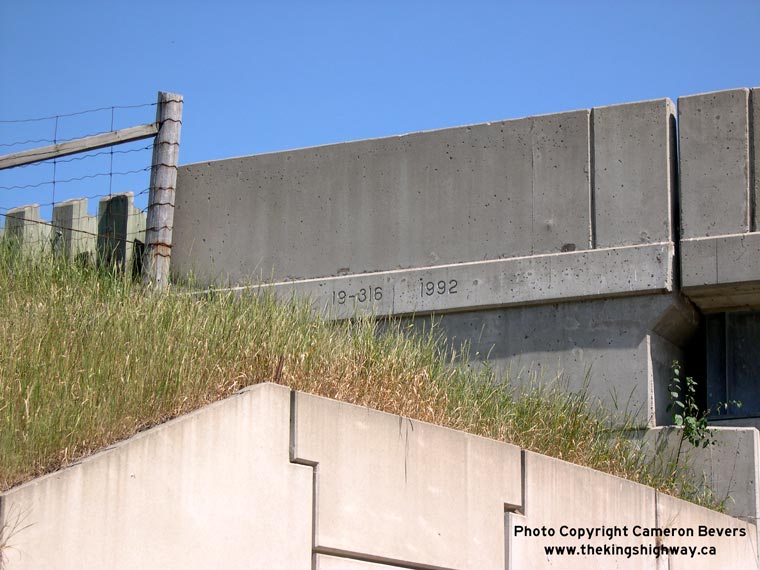

Right - Structure identification number and date stamp (1992) on the Pigram Road Underpass. Like all structures carrying roadways below Hwy 401, the Pigram Road structure had to be widened when Hwy 401 was expanded to six lanes in the early 1990s.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)





HWY 401 #946 - © Cameron Bevers             HWY 401 #947 - © Cameron Bevers

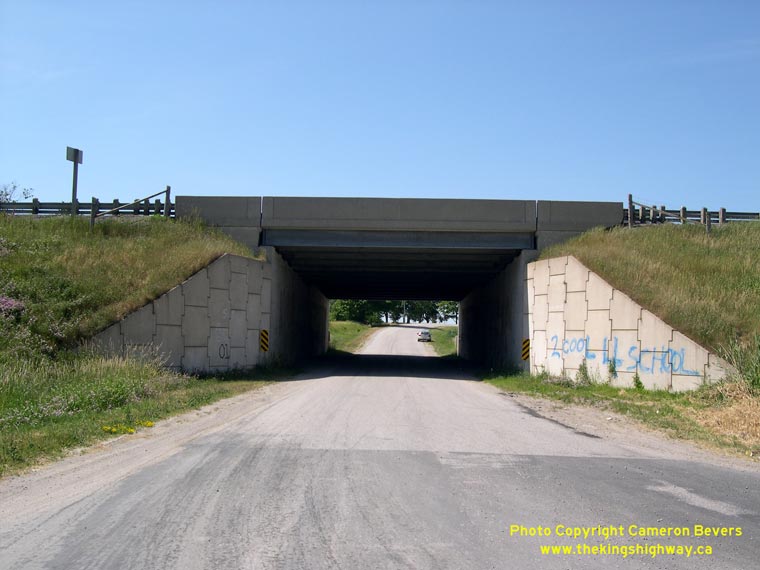

Left - Southern side of the Pigram Road Underpass. This structure marks the boundary line between Oxford and Middlesex County, and was among the earliest bridges built on Hwy 401 between Woodstock and London.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)

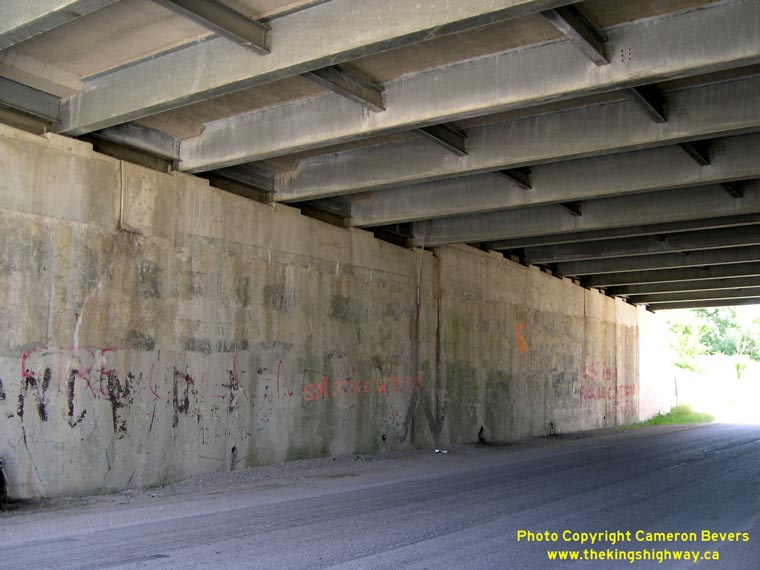

Right - The Pigram Road Underpass is a simply supported single span steel beam structure. The original 1955 structure is visible here, flanked on both sides by the extensions added during the Hwy 401 widening project in 1992.
(Photograph taken on June 24, 2007  -  © Cameron Bevers)




Continue on to King's Highway 401 Photos: Ingersoll to Woodstock
